Ninja 200 - 360 degree
2 GoPro Camera Rig
|Please Allow +1 Week for Processing Aluminum Mount Orders|
Introducing the Trespass Films Ninja. A light-weight accessible rig built for easy 360 degree media capture with the PeauPro220 cameras.
The Ninja Rig comes in 6 design options: the 1-camera rig, the 2-camera rig, the 3-camera rig, the 4-camera rig, the 6-camera rig, and for the inner Ninja army in you the 8-camera rig.
Each rig is an uber-compact design from 3D printed Nylon or milled aluminum materials (choose material above). Water insoluble and can withstand heat up to 150-160 degrees Celsius.
Total accessibility: HDMI, USB, microSD, and battery are all accessible while the camera is in the mount, allowing for fast changes, swapping, downloads, and/or charging without the additional downtime of removing the cameras from the rig.
The durable 1/4"-20 tripod threading on the top and bottom of the mount allows you to attach it to all sorts of locations. Want to attach directly to a GoPro mount? There is an included tripod to GoPro adapter.
Stitched Field of View:
Monoscopic 360x180 with 40 degree Overlap

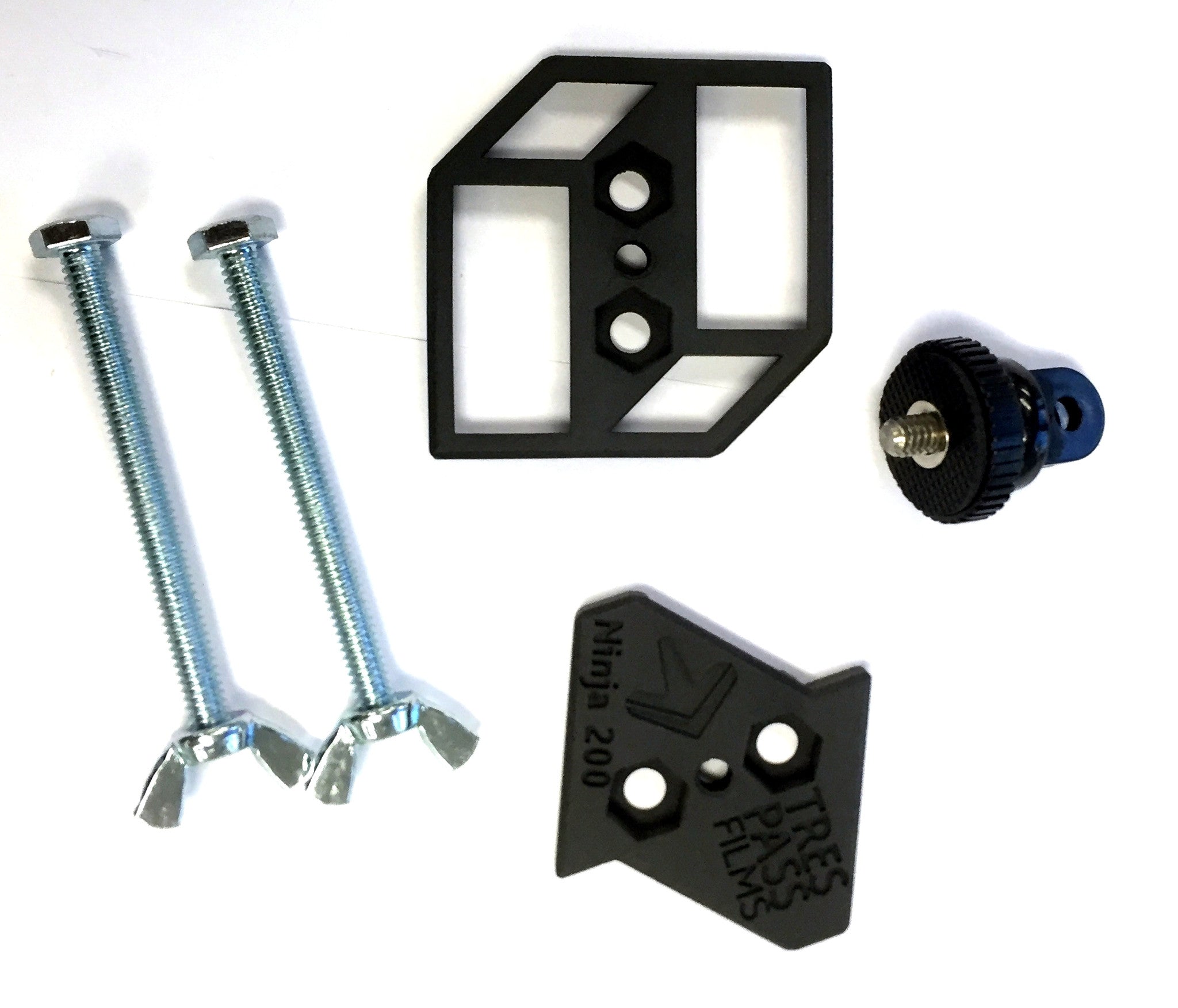

(1) Trespass Films Ninja 200 Bottom and Top Camera Plates
(2) Stainless Steel Bolts and Wingnuts
(1) Tripod 1/4"-20 Bolt to GoPro Mount
Stainless Steel Bolts and Wingnuts (per bolt/nut combo): 23g
Tripod 1/4"-20 Bolt to GoPro Mount: 13g
Mount Weight (Nylon): 58g
Mount Weight (Aluminum): 120g
Mount+Cameras Weight (Nylon): 246g
Mount+Cameras Weight (Aluminum): 308g
Kolor Autopano Stitching Template: Ninja200 [Click to Download]
2.7k 4:3 Video and 12MP Photo Frames:
