3DR SOLO Quad Static Mount - Four MAPIR Cameras

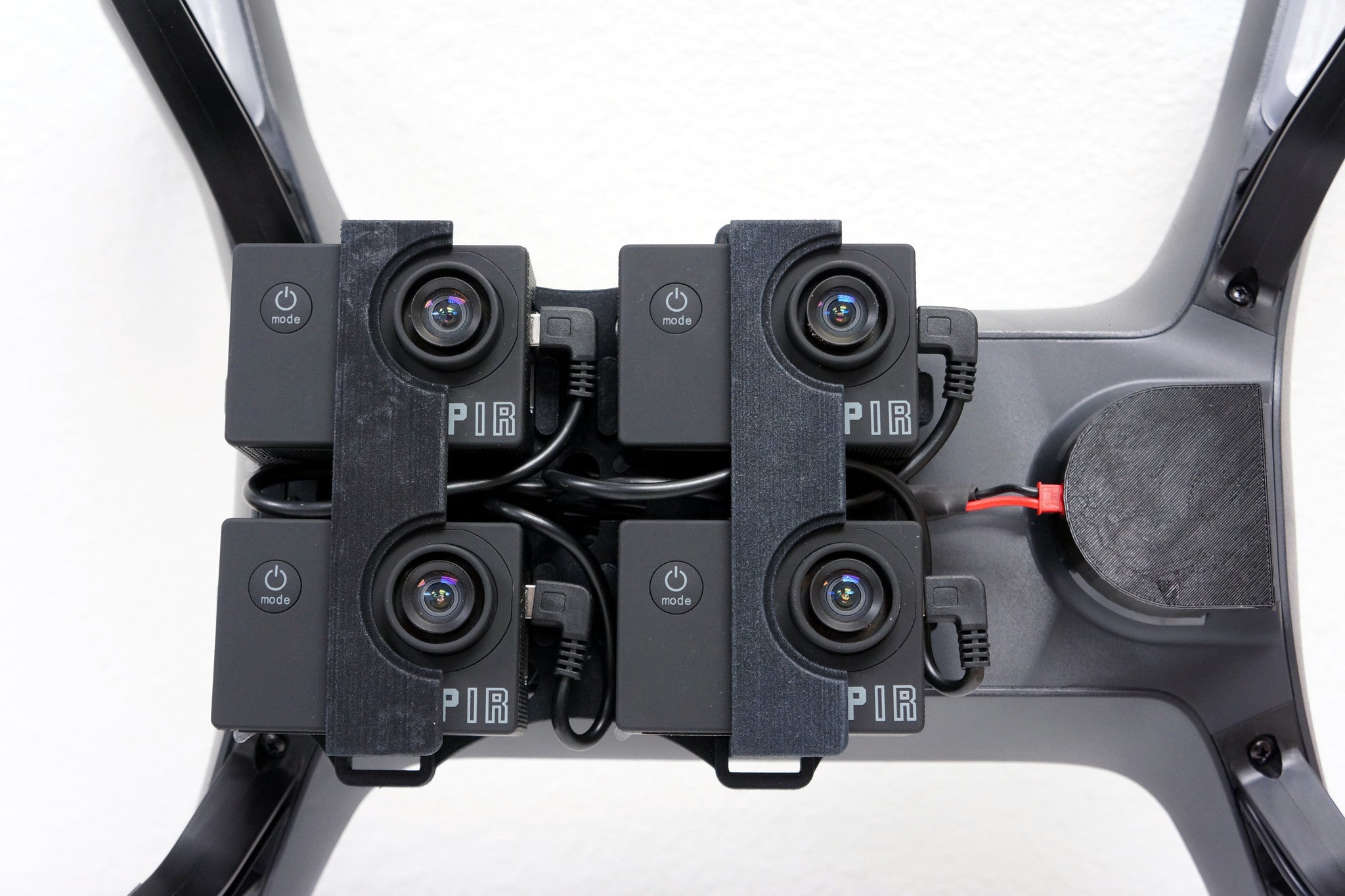

The Quad Static Mount allows you to attach up to 4 MAPIR cameras to the underside of the 3DR SOLO. This mount comes fully assembled and ready to bolt on with the included (4) M3 bolts and (4) M2 bolts. You will need to use the 3DR gimbal plate that comes with your SOLO. This mount uses 4 each of our Grey Rigid Dampening Balls and Black Flexible Dampening Balls, totaling 8 dampening balls. You can use any combination of the (2) Dual Camera Clips or the (1) Single Camera Clip which allow you to easily take the cameras on and off while providing a secure grip during flight. You can install 1, 2, 3, or 4 cameras as required with this mount. There are access holes in the center of the plate to route our USB FPV Cable through allowing you to power the MAPIR cameras without the battery installed.


(1) SOLO Quad Mounting Plate
(1) SOLO Quad Camera Mounting Plate
(2) Dual MAPIR Camera Clips
(1) Single MAPIR Camera Clip
(4) Rigid Dampening Grey Balls
(4) Flexible Dampening Black Balls
(4) M2x14 Stainless Steel Pan Head Phillips Machine Screws
(4) M3x16 Stainless Steel Pan Head Phillips Machine Screws


Product Specifications:

Weight 82.71g (When Using Two Dual Clips)
Material Black Paintable SLS Nylon Plastic
