Ninja 600 - 360 degree
6 GoPro Camera Rig
|Please Allow +1 Week for Processing Aluminum Mount Orders|

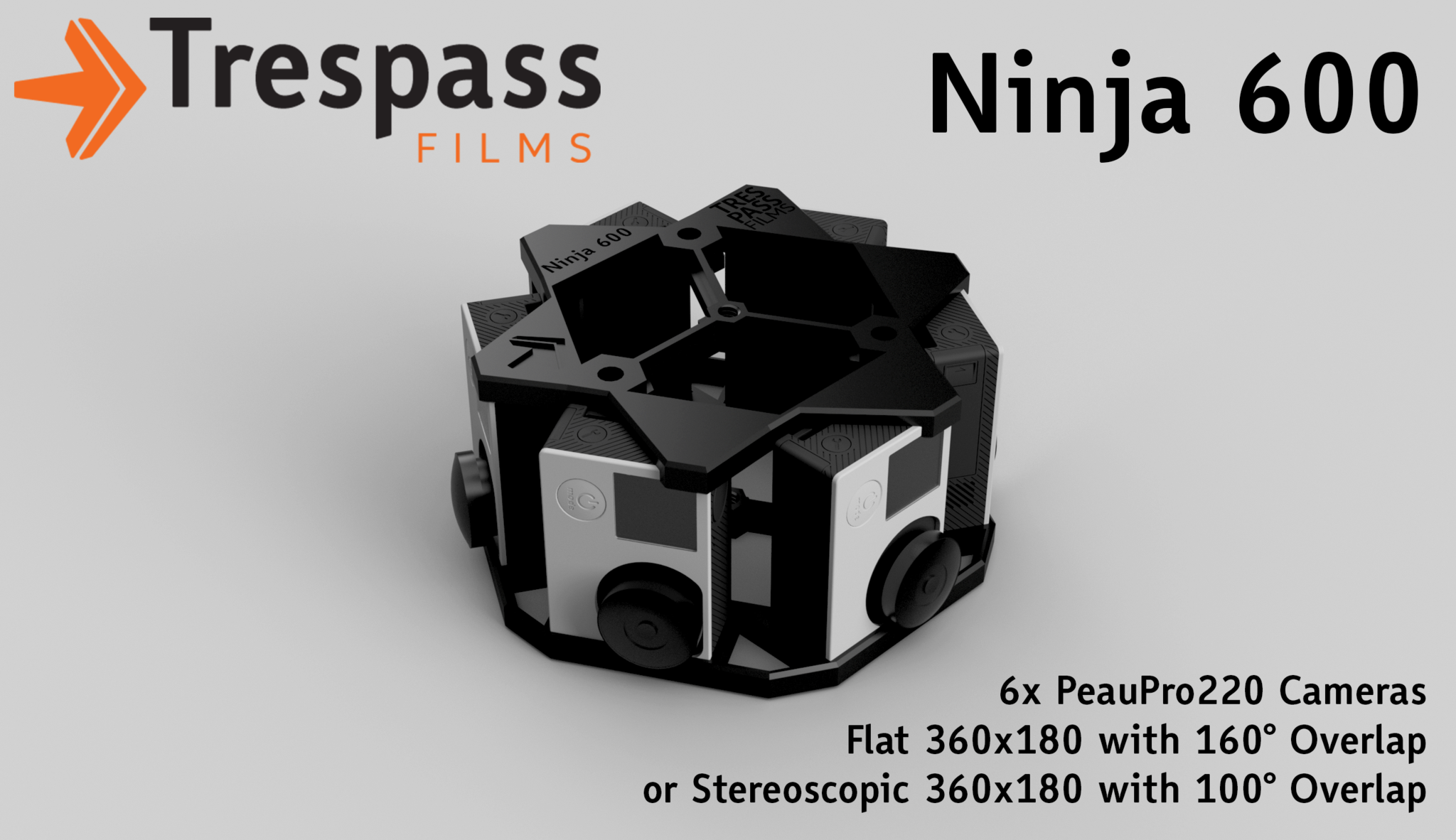

Introducing the Trespass Films Ninja. A light-weight accessible rig built for easy 360 degree media capture with the PeauPro220 cameras.
The Ninja Rig comes in 6 design options: the 1-camera rig, the 2-camera rig, the 3-camera rig, the 4-camera rig, the 6-camera rig, and for the inner Ninja army in you the 8-camera rig.
Each rig is an uber-compact design from 3D printed Nylon or milled aluminum materials (choose material above). Water insoluble and can withstand heat up to 150-160 degrees Celsius.
Total accessibility: HDMI, USB, microSD, and battery are all accessible while the camera is in the mount, allowing for fast changes, swapping, downloads, and/or charging without the additional downtime of removing the cameras from the rig.
The durable 1/4"-20 tripod threading on the top and bottom of the mount allows you to attach it to all sorts of locations. Want to attach directly to a GoPro mount? There is an included tripod to GoPro adapter.
Stitched Field of View:
Monoscopic 360x180 with 160 degree Overlap or
Stereoscopic 360x180 with 100 degree Overlap
(1) Trespass Films Ninja 600 Bottom and Top Camera Plates
(3) Stainless Steel Bolts and Wingnuts
(1) Tripod 1/4"-20 Bolt to GoPro Mount
Stainless Steel Bolts and Wingnuts (per bolt/nut combo): 23g
Tripod 1/4"-20 Bolt to GoPro Mount: 13g
Mount Weight (Nylon): 117g
Mount Weight (Aluminum): 195g
Mount+Cameras Weight (Nylon): 681g
Mount+Cameras Weight (Aluminum): 759g
4k 16:9 Video Frame:
2.7k 16:9 Video Frame:
