3.37mm f/2.8 87d HFOV 16MP
(No Distortion)(Visible - IR Cut)
The 3.37mm is our newest 4K lens designed for the GoPro® HERO® 4/3, DJI Phantom 4/3, DJI Inspire X3 and Yuneec Typhoon H CGO3+ camera lines. With its 87 degree HFOV 16MP sharp 7 glass (4G+3MO) non-fisheye optics this lens captures the entire image sensor.
- Filter Options
- Example Media

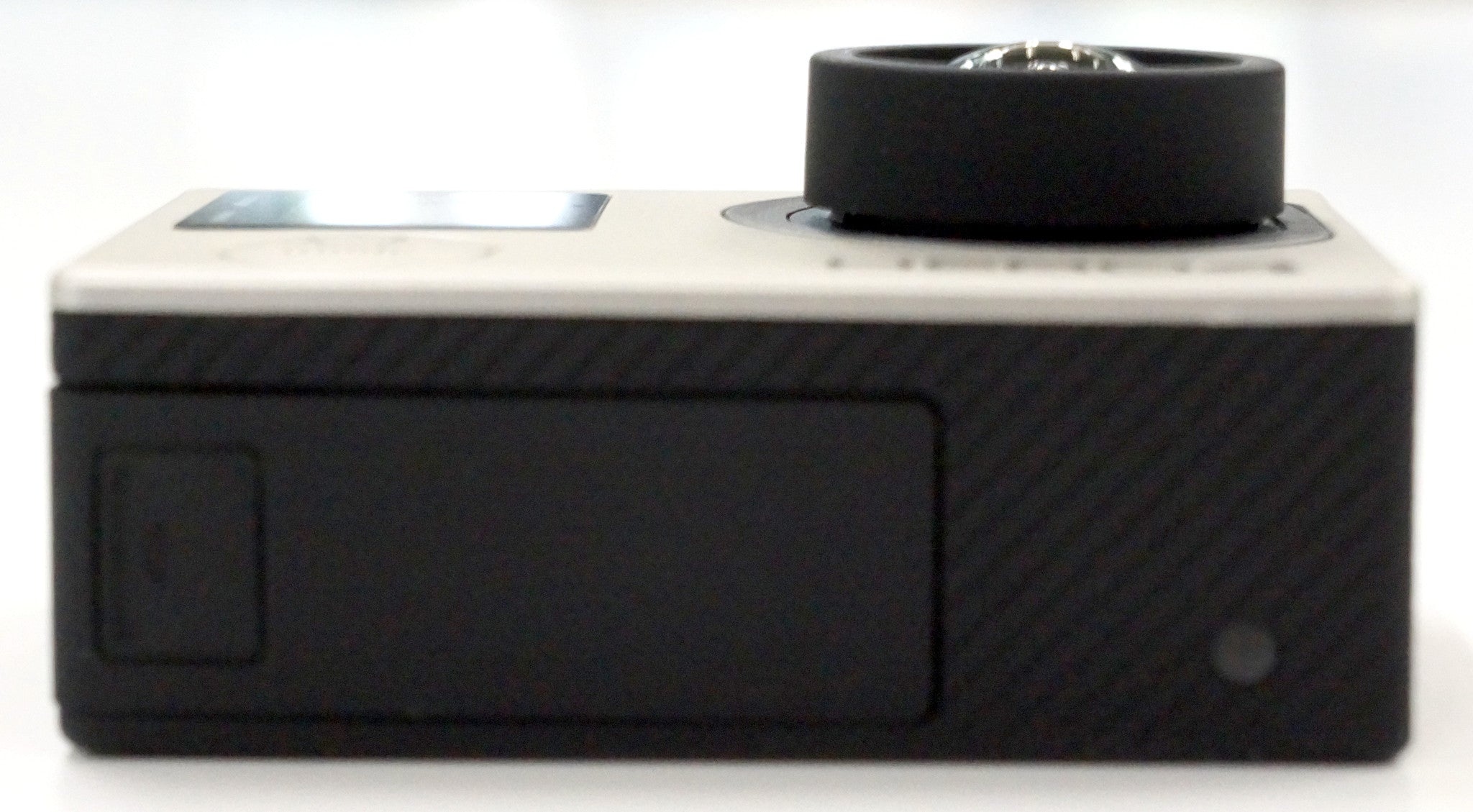

Compared to our popular 3.97mm lens, the 3.37mm is a little wider field of view and has better edge sharpness. The flare is a little more concentrated into points instead of spread out like with the 3.97mm. The 3.37mm also has a shorter TTL, so it sticks out of the camera less. This means you can use it in the GoPro® HERO® 4/3 waterproof housing and the focus will not change.

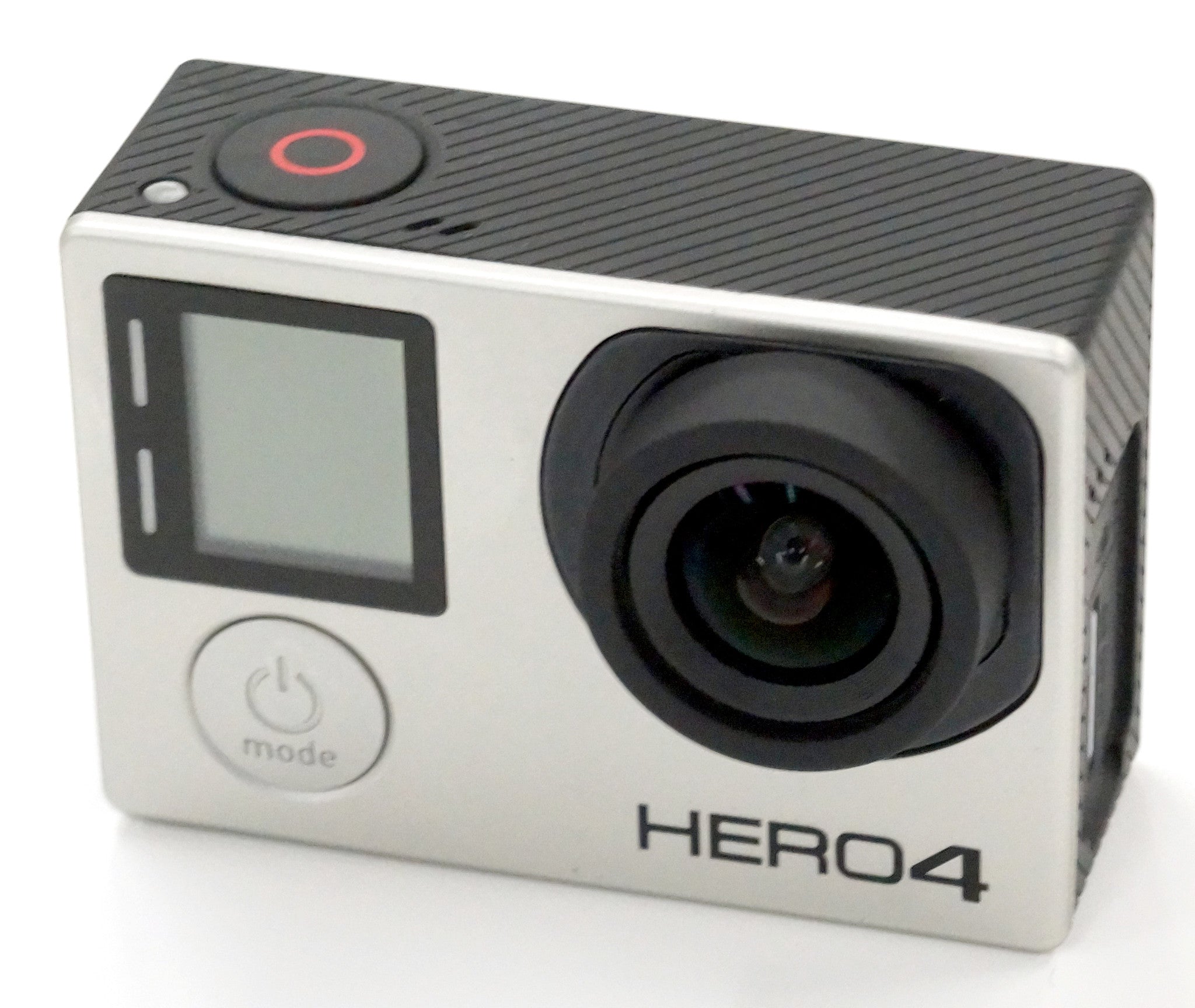

After removing the stock lens the 3.37mm threads in easily. No need to change to a different lens mount and all GoPro®, DJI and Yuneec accessories that mount around the lens surround are supported. No gap is present between the lens and the black GoPro® lens surround as the 3.37mm lens spans the entire cavity. On the DJI cameras a small gap will be created as the lens is not as large in diameter as the stock lens, so we recommend using the original glass lens protector to keep debris out. On the Yuneec CGO3+ camera the stock lens is the same diameter so no gap or modifications to the lens surround is required with the 3.37mm lens installed.
On the GoPro® HERO®, we recommend using an ND4 filter (or higher) with ISO400 for full sun shooting. On the Yuneec Typhoon H we recommend keeping shutter speeds at 1/500s or slower to reduce jello from the rolling shutter during full sun shooting. If the slower shutter speeds are too bright you can add ND filters to stop down the light.
With the same f-stop as the stock lens on the GoPro®, DJI and Yuneec cameras the capture software will never know the lens has been changed. Light levels will be handled as normal and depth of field will be very similar.
With it being 36 degrees narrower than the stock GoPro® lens, 3 degrees narrower than the DJI Inspire X3 and Phantom 4/3 cameras and 11 degrees narrower than the Yuneec H CGO3+ camera, this lens brings your subjects closer without being too zoomed in to introduce unwanted image jitter.
When you change the lens on the GoPro® HERO® cameras we recommend having us remove the stock lens profile software so the colors are natural (and not tinted pink around the edges). All GoPro example media shown has this lens profile removed from the camera. Don't want to worry about sending your GoPro® HERO® camera in to be modified? We sell new cameras with this lens installed HERE.
Model Number GP33728 Focal Length 3.37mm 35mm Equivalent (on 1/2.3" sensor) 19.0mm Fisheye/Barrel Distortion NO Black Vignetting NO Weight (Stock GoPro Lens = 5.5g) 6.83g Angle of View (V*H*D) 70 x 87 x 100 degrees Aperture (f Stop) 2.8 Back Focal Length (BFL) 2.97mm Dimensions (Diameter x Length) 17.35 x 22.32mm Native Camera Sensor Support 1/2.3" Native Megapixel Support 16MP Thread Material Metal Optics Material Glass - 8 Elements Fits in GoPro Waterproof Case? Yes GoPro Case Mod Needed? No Dust Ring Included? Yes (DR_A + DR_B)
Filter Type Description Visible Light RGB Filter (Recommended) This is the filter that most cameras have to capture Visible Light like our eyes see. All infrared (IR) light is blocked so the colors are normal. This is the same filter the stock camera has.
Example 3.37mm GoPro® Media:
